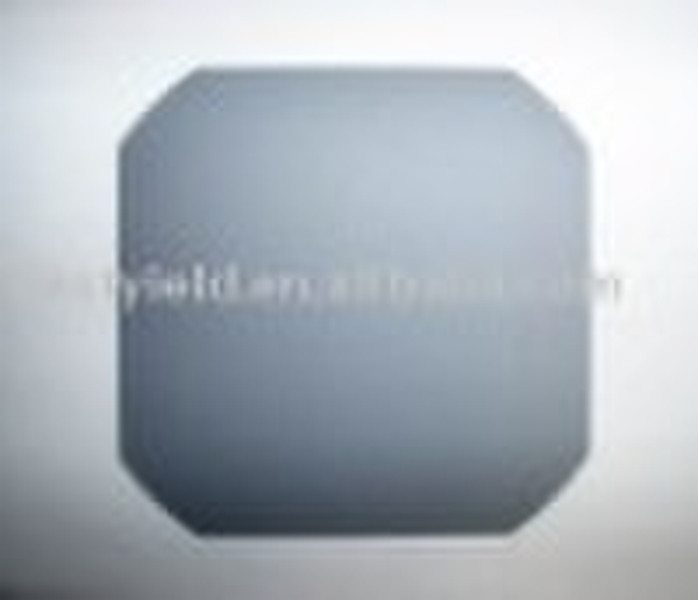

Solar wafer
Annie Wang
Contact person
Basic Information
| Place of Origin | Zhejiang China (Mainland) |
|---|---|
| Brand Name | Boyi |
ParameterDataPictureSize(mm) 125*125Conductivity Type P TypeOrientation <100>+/-3Resistivity 0.5-3.0 Ω.cmLifetime(μs) >=10Oxygen Content(atoms/cm3) <=1.0×1018Carbon Content(atoms/cm3) <=5×1016Dislocation <=3000Length(mm) 125*125+/-0.5Diameter(mm) 150+/-0.5Thickness(μm) 200+/-20TTV(μm) <=30BOW(μm) <50Surface Quality Clean, no stain, no water mark, no contamination. 156*156 Mono-crystalline Solar Wafer Specifications ParameterDataPictureSize(mm) 156*156Conductivity Type P TypeOrientation <100>+/-3Resistivity 0.5-3.0 Ω.cmLifetime(μs) >=10Oxygen Content(atoms/cm3) <=1.0×1018Carbon Content(atoms/cm3) <=5×1016Dislocation <=3000Length(mm) 156*156+/-0.5Diameter(mm) 200+/-0.5Thickness(μm) 200+/-20TTV(μm) <=30BOW(μm) <50Surface Quality Clean, no stain, no water mark, no contamination.
Delivery terms and packaging
Port: Ningbo
Payment term
Letter of credit
Telegraphic transfer
-
Payment Methods
We accept:
