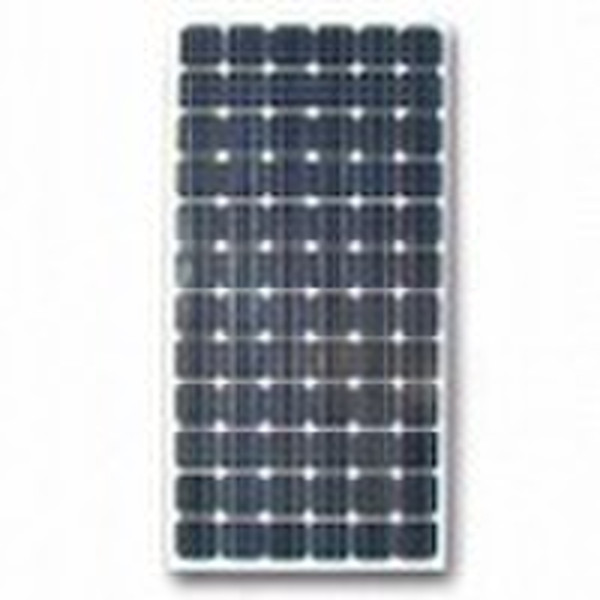

Solar Panel
Annie Wang
Contact person
Basic Information
| Place of Origin | Zhejiang China (Mainland) |
|---|---|
| Brand Name | Boyi |
| Model Number | BOYI-150 |
| Size | 1580*808*35mm |
| Number of Cells | 72 celss |
| Max. Power | 50-220W |
| Material | Monocrystalline Silicon |
High efficiency Mono crystalline solar moudle Solar cell: reduce reflecting by Chemical coating Every cell adopt twins contact increase the reliability of the circuit Tempered glass: Low iron glass increase the mechanical strength and high transmission rate glass Using multi-layer backboard, Wear-resistant, anti-tear, anti- perforation Firmly, light weight, Anti-oxidation AI frame with 4 installation hole, 2 hole for ground bolt hole One or two junction box, easy to install, safety and environment friendly Inner side diode, reduce power loss and avoid panel from shade Width work temperature: -40-+85 Pass IEC61215 Long lifetime: ≥25 years; Less power decrease. Model BYPV-160BYPV-170BYPV-180Peak power(Pmax.)(W) 160170180Open circuit voltage(V) 43.244.244.46Short Circuit Current(Isc) 5.25.355.54Maximum Power Voltage(Vmp) 34.7735.9336.72Maximum power current(Imp) 4.64.734.91Module dimensions(mm) 1580*808*35Weight(kg) 15.5Maximum system voltage DC1000VCell dimensions(mm) 125*125Production certifications IEC61215,CEStandard test conditions AM1.5 1000W/m2 25
-
